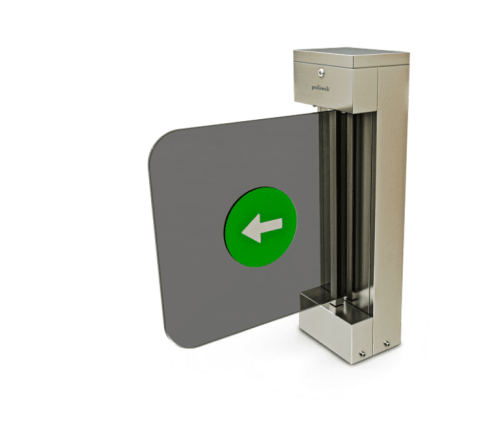

PL 001 Glass Line Turnstiles

Vip Turnstiles

Details

Operation: Bi-directional motor wing Body: 1.2 mm thick stainless steel. Wing: 10 mm tempered plexiglass IP Class: IP54 (Op. IP56)
Operating Temperature: Between (-20°C) and (+68°C) Op: -50°C with heater.

Functions:
Switching time adjustable, adjustable switching directions, automatic closing, audible alarm

Emergency: In case of all kinds of disasters and emergencies, wing can be open in either directions automatically. Power Supply: 110/220V – 50/60 Hz AC (%10 +-)

Power Consumption: 24V DC standby 12W max 60W 7W max 14W. Power supply system (SMPS) with the feature of filtering fluctuations likely to occur in electrical lines

Opening-Closing Speed: 2 second

Transition Range: 900 mm

Safety Level: Deterrent

Indicators: Bidirectional double colour led panel

Accessories: Logo engraving on wings. Sticker. Remote control unit. Reader apparatus.

Control System: Compatible with all kinds of Access control units and token systems. Opt. Functions can be controlled with RS232-485 or LAN (network)
